Project 1 · End devices

Every host knows its way out.

Each host was given a static address, the /26 mask, and a default gateway under Desktop → IP Configuration → Static. The gateway is always the R1 interface on that host's own subnet.

5 hostsGateway A · .1Gateway B · .65HTTP + HTTPS on

Static addressing#

Host Network IP address Subnet mask Default gateway
PC A A 199.19.30.2 255.255.255.192 199.19.30.1
PC B A 199.19.30.3 255.255.255.192 199.19.30.1
PC1 B 199.19.30.66 255.255.255.192 199.19.30.65
PC2 B 199.19.30.67 255.255.255.192 199.19.30.65
Server 1 B 199.19.30.68 255.255.255.192 199.19.30.65

Network A#

PC A: 199.19.30.2, mask 255.255.255.192, gateway 199.19.30.1

PC B: 199.19.30.3, mask 255.255.255.192, gateway 199.19.30.1

Network B#

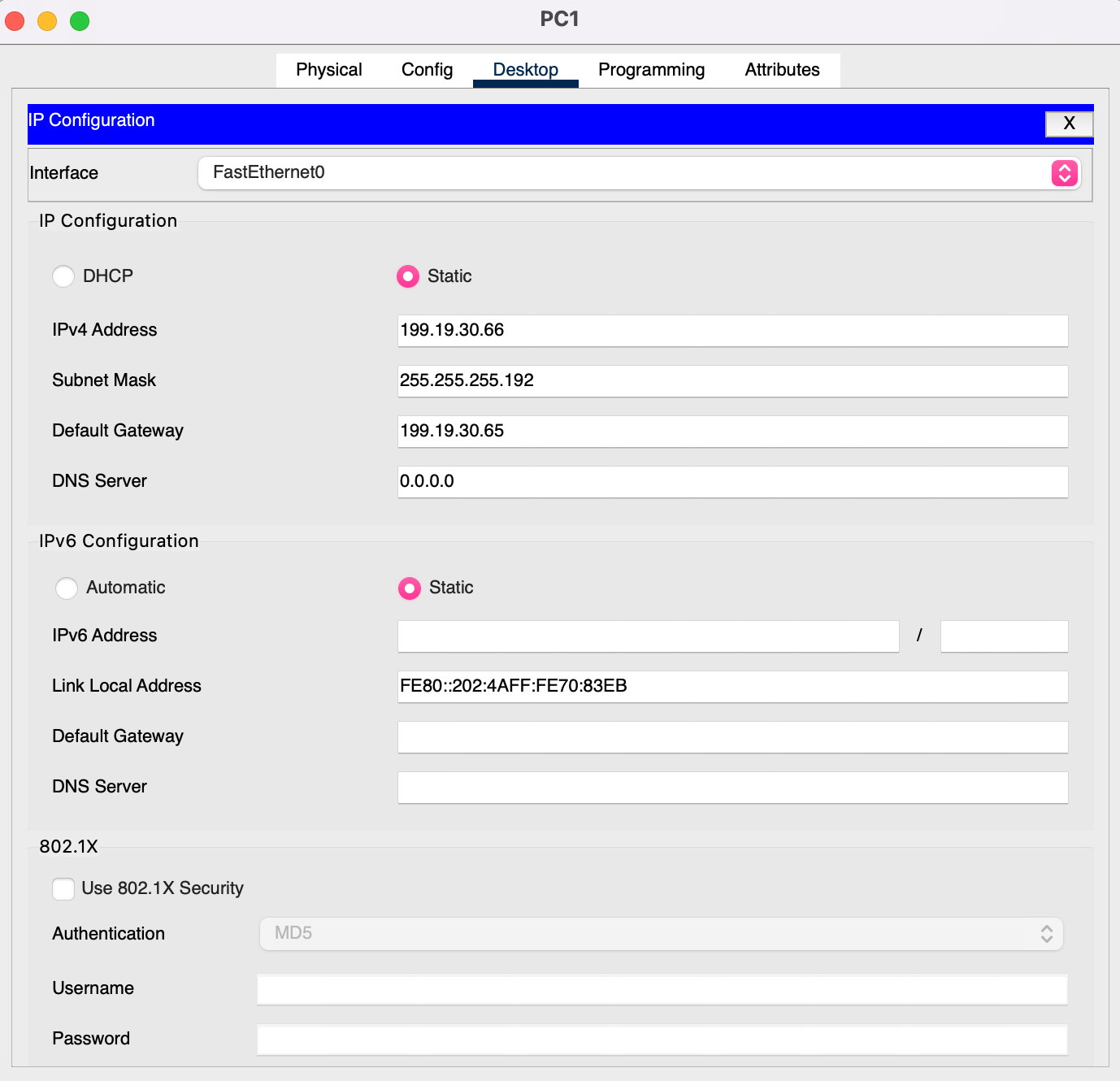

PC1: 199.19.30.66, gateway 199.19.30.65

PC2: 199.19.30.67, gateway 199.19.30.65

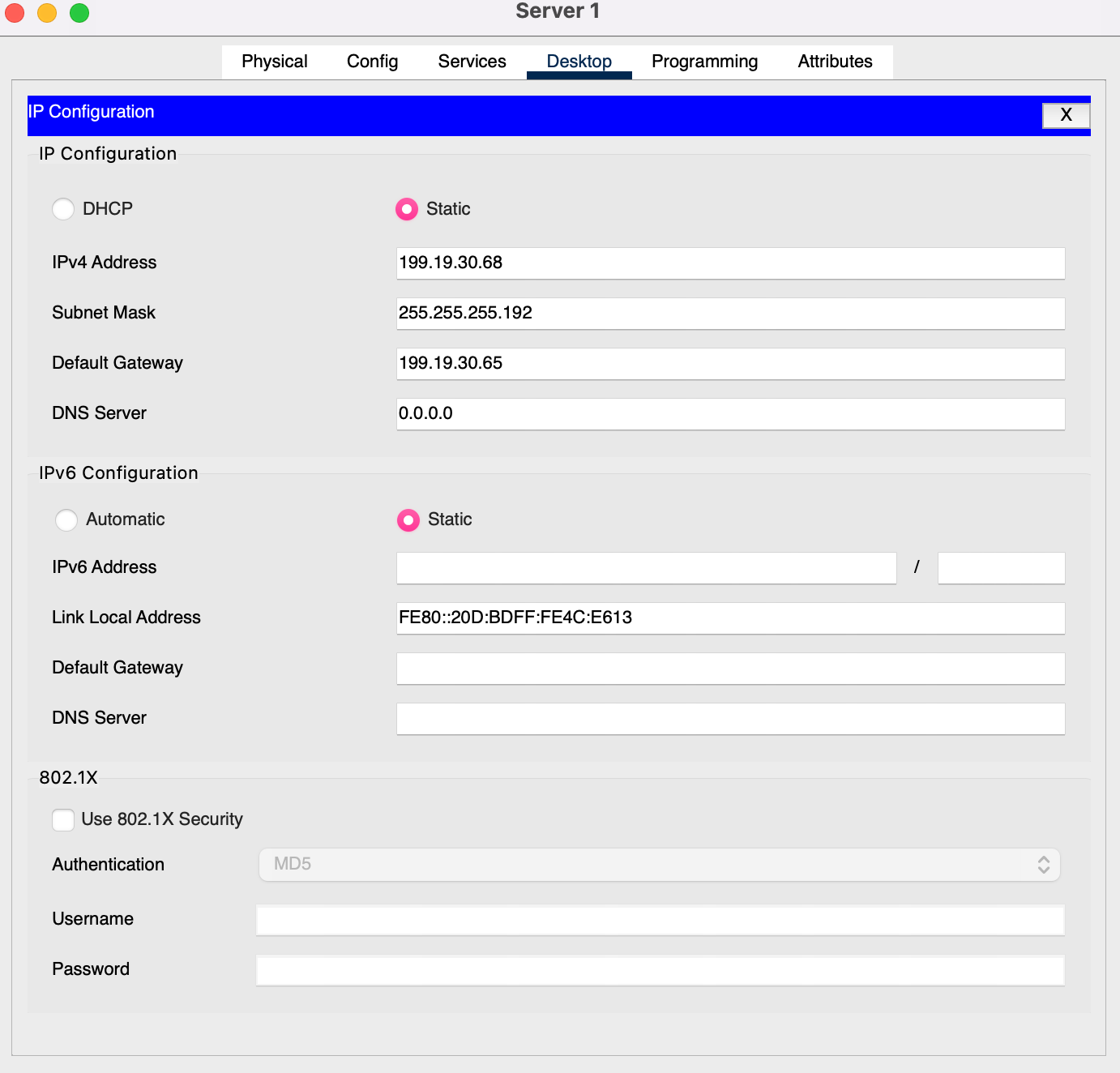

Server 1: 199.19.30.68, gateway 199.19.30.65

Web server#

On Server 1, under Services → HTTP, I turned on HTTP and HTTPS and edited index.html to show my own page:

index.html
<html>
<body>
<h1>CS331 Project 1</h1>
<p>Web Server - Shoug Alomran</p>
</body>
</html>

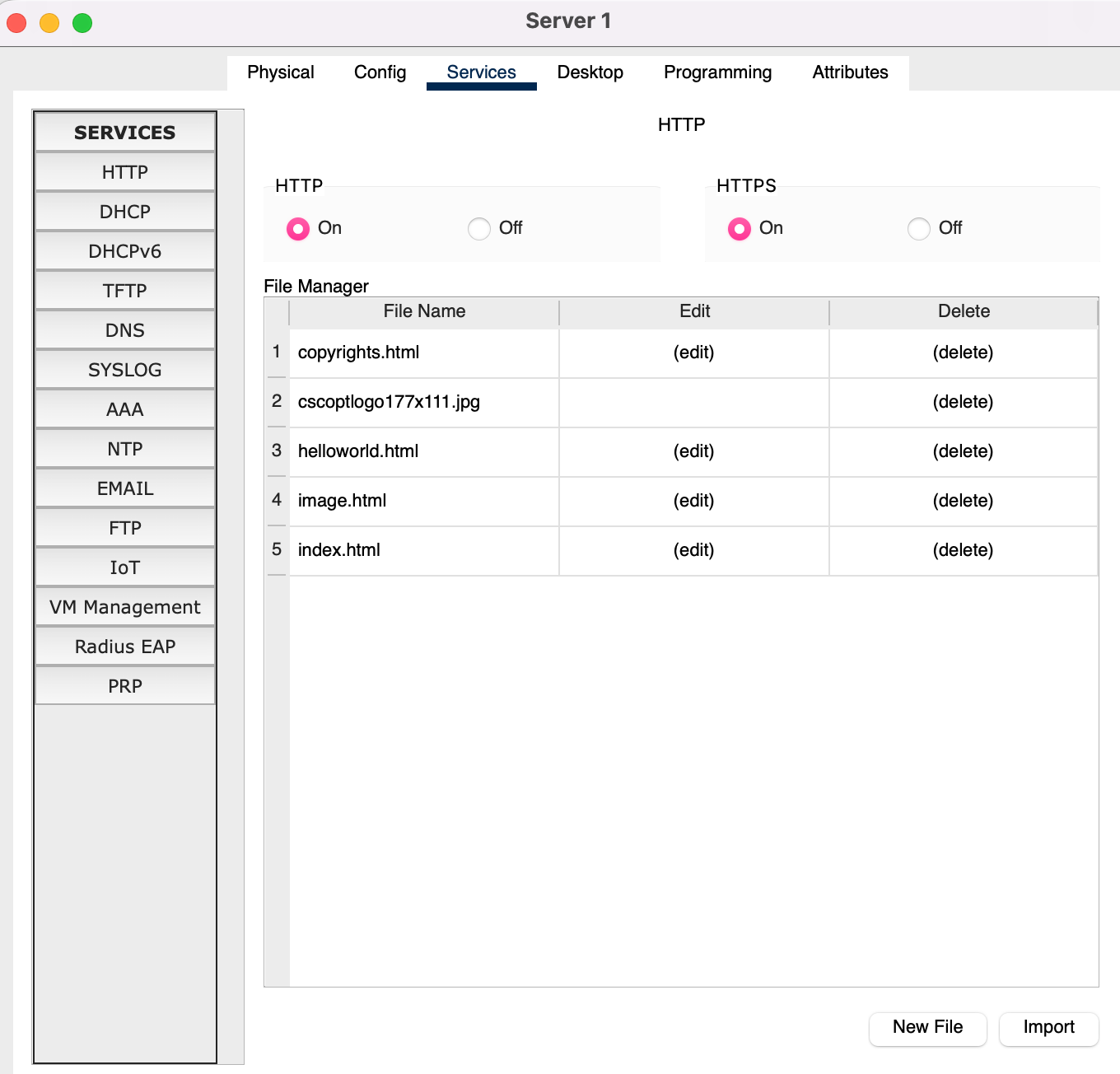

Services → HTTP: HTTP On, HTTPS On, with index.html in the file manager

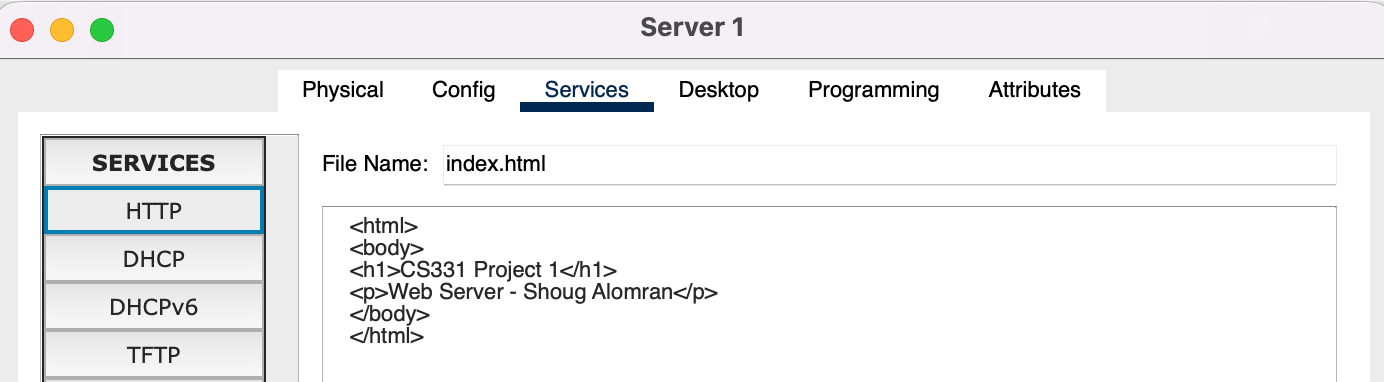

The edited index.html

The browser test from PC B is on the Verification page.
